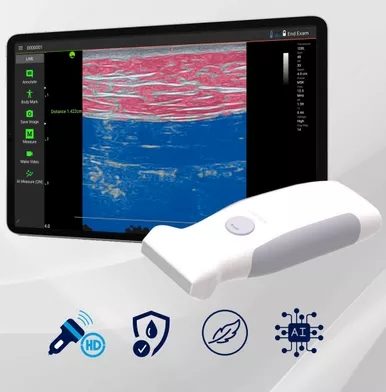

The device features a lightweight and ergonomic design, ensuring ease of use and mobility, while its intuitive interface allows for quick and efficient scanning operation. Whether used in emergency situations, remote locations, or routine clinical settings, the VioScan L2 offers reliable performance and exceptional image clarity, enhancing diagnostic accuracy and patient care.
Features & Benefits
- Quick charging 2hr battery life
- Seamless DICOM connectivity integration with EMR
- Fast connection across Windows, iOS, & Android
- Customize 30+ imaging parameters
- 15+ preset medical protocols
- Smart AI Assisted Clinical Support
- IP67 waterproof unit with a feather-light design
- 4.2-12.5 MHz bandwidth with 12.6cm penetration
Technical Data
- Array type: Curved Convex
- Number of elements: 128
- Depth: 18.9 cm (7.44 inches)
- Frequency bandwidth: 2.0 – 5.0 MHz
- Field of view: 60°
- Depth: 18 cm (7.09 inches)
- Radius of Curvature: 60 mm (2.36 inches)
- Field of View: 60゜
- Clinical Applications: Abdomen, Abdomen Difficult, Renal, GYN, OB Mid Late, OB Early, Spleen, Bladder
- Measurements, FAST, Color Doppler*, Power Doppler*, Pulsed Wave*
- Dimensions: 187 × 74 × 40 mm (7.36 × 2.91 × 1.57 inches)
- Weight: 388 g (13.69 oz)
Brochure
