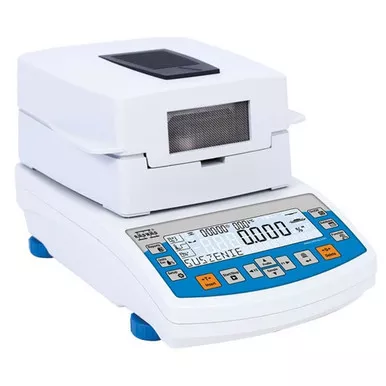

Radwag MA-50.R.NS Moisture Analyzer
Moisture analyzer is a laboratory measuring instrument intended to determine relative humidity for small samples of different materials. MA.R series redefines moisture analyzers standards.
Collected data is registered in 6 databases:
- Users (up to 10 users)
- Products (up to 1000 products)
- Weighings (up to 1000 weighings)
- Tares (up to 100 tares)
- Programs (up to 100 drying programs)
- Drying process reports (up to 1000 reports)
Datasheet
Metrological parameters
| Maximum capacity [Max] |
50 g |
| Readability [d] |
1 mg |
| Tare range |
-50 g |
| Adjustment |
external |
| Maximum sample weight |
50 g |
| Heating module |
IR emitter |
| Moisture content repeatability |
±0.05 % (sample ~ 2 g), ±0.01 % (sample ~ 10 g) |
| Moisture content readability |
0.001 % |
| Drying temperature range |
Max 160 °C |
Physical parameters
| Leveling system |
manual |
| Display |
LCD (backlit) |
| Maximum sample height |
20 mm |
| Weighing pan dimensions |
ø90, h= 8 mm |
| Packaging dimensions |
476×381×346 mm |
| Net weight |
4.63 kg |
| Gross weight |
6 kg |
ConstructionFeatures of useCommunication interfaceElectrical parametersEnvironmental conditionsSOP – metrological tests (additional options)
| Protection class |
IP 43 |
| Display mode |
%D, %M, %R, g |
| Drying method |
4 drying profiles (standard, fast, step, mild) |
| Finish mode |
4 modes (automatic, manual, time-defined, user-defined) |
| Additional functions |
sample traceability |
| Communication interface |
RS232¹, USB-A, USB-B, Wi-Fi® |
| Power supply |
100 – 120 V AC 50/60 Hz or 200-240 V AC 50/60 Hz |
| Power consumption |
4 W |
| Heating module power |
450 W |
| Operating temperature |
+10 – +40 °C |
| Mass indication control |
External mass standard 50 g, 100 g, 200 g, depending on the type of moisture analyzer (additional equipment) |
| Drying temperature adjustment |
Three-point adjustment at defined temperatures, programmable values (additional equipment: GT105k-12/Z Control Thermometer) |
| Drying temperature control |
One- or two-point, depending on the drying profile (additional equipment: GT105k-12/Z Control Thermometer) |
| Moisture content indication control |
Certified MV Test Set (additional equipment) |
3-Years Warranty
