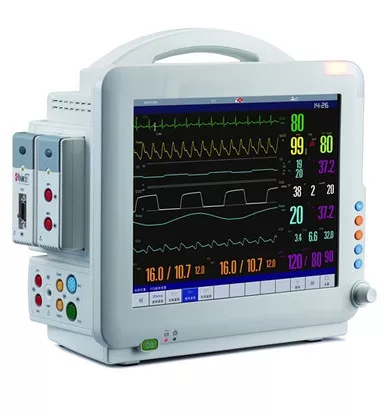

The VI-1220P touchscreen multi-parameter monitor provides essential measurement parameters such as SpO2, NIBP, and CO2, and offers high cost-performance ratio to give care teams throughout the hospital more of the information they need right at the patient’s side, such as ambulance, doctors’ office, out-patient department, and post-operative.
Features and Benefits
- 12.1” touchscreen LCD high resolution display
- Resistance to high electromagnetic power and is protected against defibrillation effects
- Large font display for distant visibility
- User friendly operating user interface with feature rich popup menus, dialogue boxes and rotary mouse.
- Digital SpO2 technology offers anti-motion and anti-low perfusion functions
- Unique one-screen all-lead ECG display, which can facilitate the diagnosis and analysis of cardiac disease.
- Audio and visual comprehensive alarm with configurable vital sign limit settings.
- Capable to store up to 360 hours of data records.
- Capable of printing vital signs data, EKG charts, waveforms with optional built-in thermal recorder.
- EtCO2 socket made ready. EtCO2 measurement is a plug-n-play with optional
- Drug concentration calculation.
- Support multi-language operating interface: English, Spanish, Portuguese, French and etc.
- Optional CO2 detection function available
- Optional 12-Lead ECG available
- Optional IBP available
Standard Configuration
- EKG 3 or 5 Lead
- Heart Rate
- Respiration
- SpO2 (Pulse reading & PLETH waveform)
- NIBP
- Temperature
- Arrythmia
- S-T Analysis
- OxyCRG
- Built-in rechargeable battery
- Built-in thermal printer
- EtCO2 sensor socket ready
Optional Features: EtCO2, 12-Lead ECG, IBP, Nellcor SpO2 or Masimo SpO2
Materials Included
- VI-1200MT Multi-Parameter Monitor
- 1 EKG 3/ 5 Lead Cable (6 Pin)
- 1 Adult Blood Pressure Cuff (25-35 cm)
- 1 10′ Blood Pressure Extension Hose
- 1 Adult SpO2 Finger Sensor
- 1 Temperature Probe
- 1 Grounding Cable with Clamp
- 1 Power Supply
- 1 Lithium Ion Battery
- 1 Roll of Thermal Paper
- 12 Lead ECG Cable (For Optional 12-Lead ECG)
- 2 IBP Disposable Transducers (For Optional IBP)
- 1 IBP Cable (For Optional IBP)
- 2 Nasal Cannula (For Optional EtCO2)
- 1 Sampling Line (For Optional EtCO2)
- User Manual
Technical Specifications EKG
- EKG Input: 3- or 5-lead, 12-lead EKG input (option)
- EKG Lead: I, II, III, aVR, aVL, aVF, V, V1-V6 (option)
- Gain Choice: AUTO, 0.25x, 0.5x, 1.0x, 2.0x, 4.0x
- Scanning Speed: 12.5mm/s, 25mm/s, 50mm/s
- Heart Rate Range:
- 3- or 5-lead EKG module – 10-350 bpm
- 12-lead ECG module – 25-254bpm
- Frequency Response:
- 3- or 5-lead EKG module – MON 0.5-40Hz, OPS 1-25Hz
- 12-lead EKG module – MON 0.5-25Hz, OPS 1-15Hz
NIBP
- Measurement Method: Automatic oscillometry
- Patient Types: Adults/Pediatrics/Neonate
- Measurement Parameters: Systolic, Mean, Diastolic
- Measurement Range: 10-270mmHg
- Units of Measurement: mmHg/Kpa
- Static Accuracy: ±2% or ±3 mmHg, whichever is greater
- Clinical Accuracy: ±5 mmHg average error, <=8 mmHg standard deviation
Pulse Rate/SpO2
- Display: Digital and PLETH waveform
- Measurement Range: 0-100% Resolution: 1%
- Pulse Rate Range: 25-250BPM Accuracy: ±1% or ±1 bpm, whichever is greater
- Resolution: 1BPM
Temperature
- Measurement range: 25.0–45.0°C
- Accuracy: ±0.1°C
- Unit: Celsius (°C), Fahrenheit (ºF)
EtCO2
- Measurement Type: Side Steam
- Measurement Range: 0% – 10.0%
- Accuracy: ±2mmHg
Warranty Information
- 1-Year Warranty
