WATER SUPPLY LINE ASSEMBLY
- Replace the Disc Filter (Water) every 3 months or when the Disc Filter (Water) becomes discolored to prevent reduced water flow to the system. The RPI Water Supply Assemblyincludes two (2) extra Disc Filters (Water)plus a PM Log for your convenience.
- WARNING: Incoming water supply line pressureto the Scaler must be 25 psi (172 kPa) to 60 psi (414 kPa). Water supply line must be shut off or disconnected when Scaler is not in use.
- Also available: Disc Filter (Water) (10-pack) (RPI Part DSF005), Union Fitting (3/16″) (RPI Part DSF048), and Cord Strap (White 6″) (RPI Part RPS672)
- See Notes below for parts included in this kit
Fits: 3/16″ Push-In Union Fitting/Cavitron to Water Source

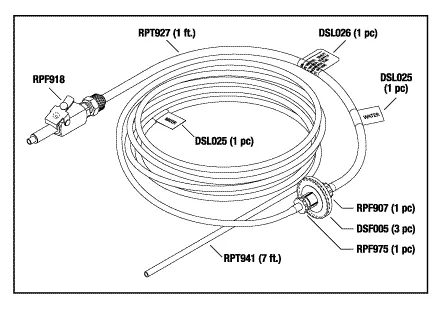

Includes:
- Male Quick Disconnect (1/4″ Poly Auto Shut-Off) (RPI Part RPF918)
- (7 ft.) Tubing (.107″ ID x 3/16″ OD Blue) (RPI Part RPT941)
- (1 ft.) Tubing (.160″ ID x 1/4″ OD Blue) (RPI Part RPT927)
- (3 pc) Disc Filter (Water) (RPI Part DSF005)
- (1 pc) Luer Lock (Male x 5/32″ Barb) (RPI Part RPF907
